AT-X MIL
SHORT ACTION 6.5 CREEDMOOR /.308 WIN
PROFESSIONAL RIFLE
The next generation Accuracy International high performance, low profile AT-X Mil rifle features cross-platform enhancements to match the demands of professional operators worldwide. All relevant NATO/military tests have been successfully conducted for assurance of enduring performance in the harshest conditions.
AT-X MIL FOR MILITARY AND LAW ENFORCEMENT
LOW PROFILE, HIGH SPEC.
The next generation distinguished line of Accuracy International sniper rifles, the AT-X Mil rifle features cross-platform enhancements to match the demands of operators worldwide.
PERFECT BALANCE
With a cut-rifled barrel manufactured by AI in the UK and central point of balance delivering linear recoil and rapid setup, the AT-X Mil is a rigid and reliable platform for accuracy at speed.
WITHOUT COMPROMISE
The AT-X Mil comes configured with all the accessories necessary for the optimum professional rifle system. AI accuracy, repeatability and reliability naturally come as standard.
AT-X MIL CONFIGURATIONS
Includes long bridge, folding hinge and rear grip
| CAL. | BBL LENGTH | MUZZLE THREAD | MUZZLE BRAKE | MOUNTING SYSTEM |
|---|---|---|---|---|
| 6.5 Creedmoor | 16.5"/20"/24"/26" | 3/4"x24, 5/8"x24 | NONE / B&T Ag | KeySlot / M-LOK |
| 419mm/508mm/610mm/660mm | ||||
| .308 WIN | 16.5"/20"/24"/26" | 3/4"x24, 5/8"x24 | NONE / B&T Ag | KeySlot / M-LOK |
| 419mm/508mm/610mm/660mm |
AT-X MIL FEATURES
List of Services
-
BUTT PADSHOW ME List Item 1
Toolless, quick adjust butt pad with spacers. LOP adjustment 55 mm (excluding spacers)
-
CHEEKPIECESHOW ME List Item 2
Height adjustable to allow for night vision equipment or telescopic sights with large objective lenses. A hex key for barrel change etc. is convenientLy stored beneath
-
REAR GRIPItem Link List Item 3
Rail mounted rear grip. A quick adjust butt spike is also available as an accessory
-
FOLDING HINGESHOW ME List Item 4
The rigid and stable right folding chassis locks securely over the bolt. Reduces overall length by 225 mm.
-
SLING POINTSItem Link
Five flush cup style points, two on rear end, one on side, and two repositional on the forend tube
-
PISTOL GRIPItem Link
Rubber AR style replaceable pistol grip
-
SAFETYSHOW ME
Three position safety catch on the bolt shroud:
Locked (bolt cannot be lifted)
Safe (bolt can be lifted)
Fire (firing pin engaged)
-
TRIGGERItem Link
Standard AI trigger. Two stage, adjustable for reach and weight between 1.5 Kg and 2 Kg. Easily removable (two socket head screws) for cleaning
-
BOLTItem Link
Enhanced design, 6 lug, 60° bolt and AI combat proven leaf spring extractor
List of Services
-
MAGAZINESHOW ME List Item 1
10 round double stack magazine. Slim profile mag catch for ambidextrous removal. Cut out magazine port on the left side for ease of insertion
-
ACTIONItem Link List Item 2
New design evolution with enhanced features, 3 position safety catch on bolt shroud, 6 lug, 60 deg. dynamic bolt lift
-
QUICKLOCItem Link List Item 3
AI’s patented system for barrel removal and refit including calibre/length change in minutes using the hex key stored under the cheekpiece.
-
TRIPOD MOUNTItem Link List Item 4

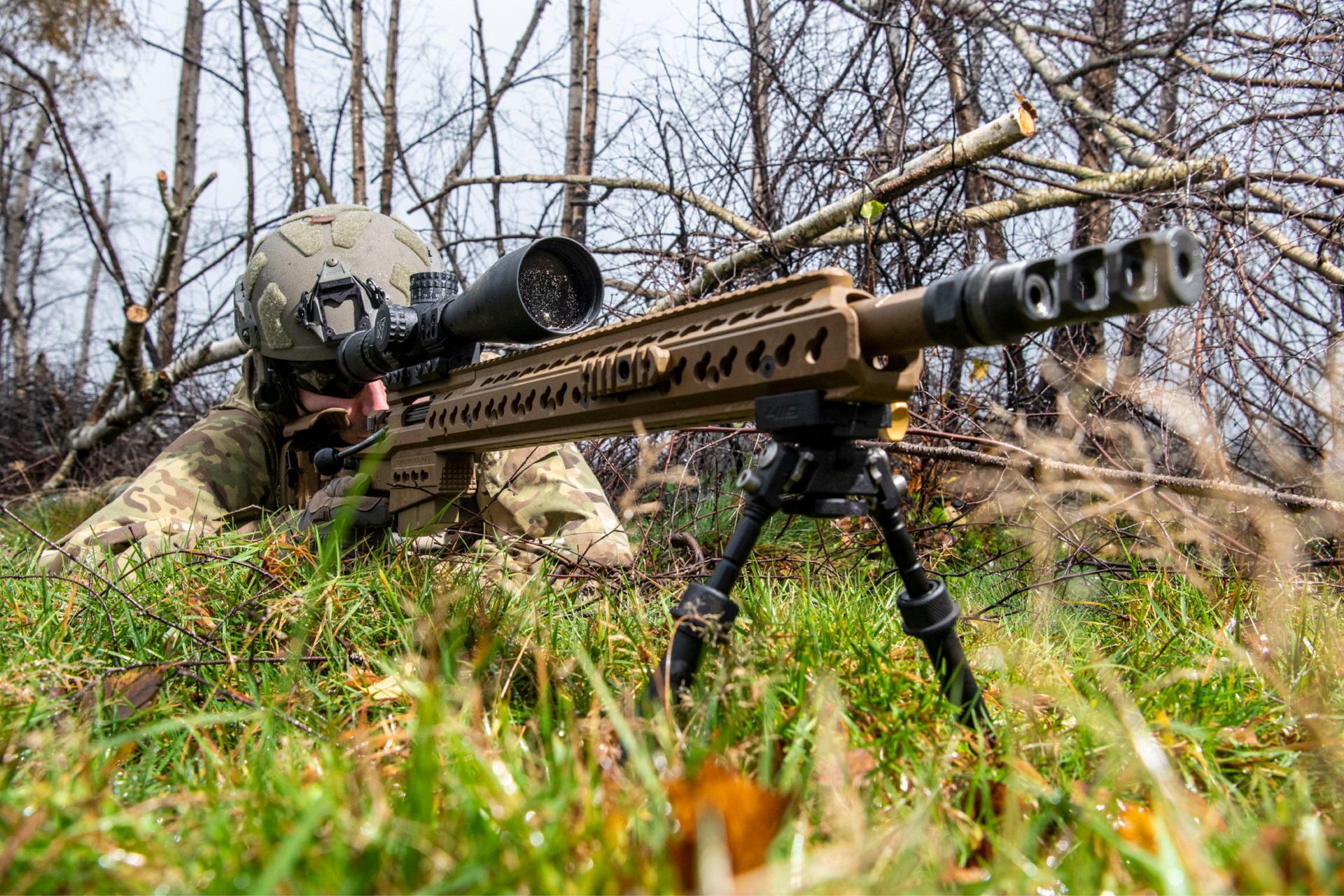

The flat bottomed forend features an integral RRS (Arca-Swiss style) tripod mounting rail
-
BARRIER SUPPORTItem Link
The lower chassis front face is machined to provide a rugged barricade support
-
FORENDItem Link
Free floating low profile single plane upper chasis and bridge with rail, available in standard (397mm) or shorter (330mm) length. KeySlot™ or M-Lok mounting system for accessory rails.
-
BARRELSItem Link
AI profile and cut-rifled barrels manufactured in England by AI UK
-
MUZZLE BRAKEItem Link
B&T Ag muzzle brake reduces recoil, muzzle flash and dust eruption. Designed for use with B&T Ag Suppressor.
-
CHASSISItem Link
7075 aluminium chassis with AI KeySlot™ mounting system, featuring 20 MOA Action Rail, and AI repeatable Quickloc barrel change system
AT-X MIL ACCESSORIES
CALIBRES
.308 Winchester (short action)
6.5 Creedmoor (short action)
WEIGHT
With standard rail setup, empty magazine, no scope, 24” barrel, tactical muzzle brake: 6.2 kg
DIMENSIONS
With 24” barrel & tactical muzzle brake
Full length:
1155 mm x 180 mm x 100 mm
Stock folded:
940 mm x 180 mm x 105 mm
BARREL OPTIONS
• 20” or 24” plain or threaded barrel for AI muzzle brake
• 26” threaded barrel for AI muzzle brake 1 in 12 twist
B&T AG SUPPRESSOR
AT-X MIL COLOURS
BLACK
SAGE GREEN
DARK EARTH
AT-X MIL SPECIFICATION
CALIBREs
6.5 Creedmoor | .308 WIN multi calibre
WEIGHT
With B&T Ag muzzle brake, hinge, empty magazine, long bridge, bridge rail, rear grip, 24" .308 barrel: 6.54 kg
DIMENSIONS
With 24” barrel & B&T Ag muzzle brake
Full length: 1226mm
Stock folded: 1002mm
BARREL OPTIONS
6.5 Creedmoor 1:8 twist
16.5" (419mm), 20" (508mm),
24" (610mm), 26" (660mm)
.308 WIN 1:8/1:10 twist
16.5" (419mm), 20" (508mm),
24" (610mm), 26" (660mm)
Muzzle thread options (all barrels)
3/4"x 24 no muzzle brake/B&T Ag muzzle brake
5/8"x 24 no muzzle brake/B&T Ag muzzle brake
FEATURES
• Right side folding stock over bolt
• Toolless, quick adjust cheekpiece
• Toolless, quick adjust buttpad with spacers
• LOP adjustment 55 mm
• Rear grip (rail mounted)
• KeySlot™ or M-LOK forend mounting system with integral RRS spec. rail interface and machined barrier support
• Rubber AR style changeable pistol grip
• Flush cup sling attachment points
• 20 MOA STANAG 4694 / Mil Std 1913 action rail and forend rail
• B&T Ag AI spec muzzle brake for use with B&T Ag suppressor
• 2 x 80 mm flush cup accessory rails
• User manual
• 1 x 10 round double stack CIP magazine
ACCESSORIES
• STANAG 4694 / Mil std 1913 accessory rails
• AI Bipod and mounts for other bipod brands
• Quick adjust butt spike
• Suppressor
• Slings
• Transit cases
• Cleaning kits
