AX ELR
.50 BMG RIFLE
The next generation Accuracy International high performance AX ELR has an impeccable pedigree. Featuring cross-platform enhancements to match the demands of the sporting communities and professional operators worldwide.
AX ELR QUALITY WITHOUT COMPROMISE
HIGH SPEC.
The non-bonded barrelled action comes complete with all the options configured for the perfect rifle.
PERFECT BALANCE
Reliable and easy to maintain, the AX ELR exhibits all the features necessary to ensure superb accuracy and consistent cold shot performance in the harshest conditions.
AI QUALITY
Designed to withstand constant military deployment, the AX ELR long range rifle is supplied configured to .50 BMG (12.7mm).
| CALIBRE | BBL LENGTH | MUZZLE THREAD | MUZZLE BRAKE |
|---|---|---|---|
| .50 BMG (12.7 x 99 mm) | 27" (692 mm), 1 in 15 twist | M24 x 1 | Triple chamber |
AX ELR FEATURES
List of Services
-
BUTT PADSHOW ME List Item 1
Toolless, quick adjust butt pad with spacers. LOP adjustment 49 mm (excluding spacers)
-
CHEEKPIECESHOW ME List Item 2
Height adjustable to allow for night vision equipment or telescopic sights with large objective lenses. A hex key for barrel change etc. is convenientLy stored beneath
-
REAR GRIPItem Link List Item 3
Rail mounted rear grip. A quick adjust butt spike is also available as an accessory
-
FOLDING STOCKSHOW ME List Item 4
The rigid and stable right folding stock locks securely over the bolt. Reduces overall length by 241 mm.
-
SLING POINTSItem Link
Four flush cup style points, two on stock and one repositional on each side of KeySlot™ forend tube
-
PISTOL GRIPItem Link
Rubber AR style replaceable pistol grip
-
SAFETYSHOW ME
Three position safety catch on the bolt shroud:
Locked (bolt cannot be lifted)
Safe (bolt can be lifted)
Fire (firing pin engaged)
-
TRIGGERItem Link
AI standard trigger. Two stage, adjustable for reach and weight between 1.5 and 2Kg. Easily removable (two socket head screws) for cleaning
List of Services
-
MAGAZINESHOW ME List Item 1
10 round double stack magazine. Slim profile mag catch for ambidextrous extraction . Cut out magazine port on the left side for ease of insertion
-
ACTIONItem Link List Item 2
Proofed EN24T steel action and bolt body with maraging steel bolt head and lock ring, 3 position safety catch on bolt shroud, 6 lug 60° dynamic bolt throw. 45 MOA STANAG 4694 / Mil Std 1913 action rail and forend rail. Action bolted to the aluminium chassis with 5 action screws
-
QUICKLOCItem Link List Item 3
AI’s patented system for barrel removal and refit including calibre/length change in minutes using the hex key stored under the cheekpiece
-
TRIPOD MOUNTItem Link List Item 4

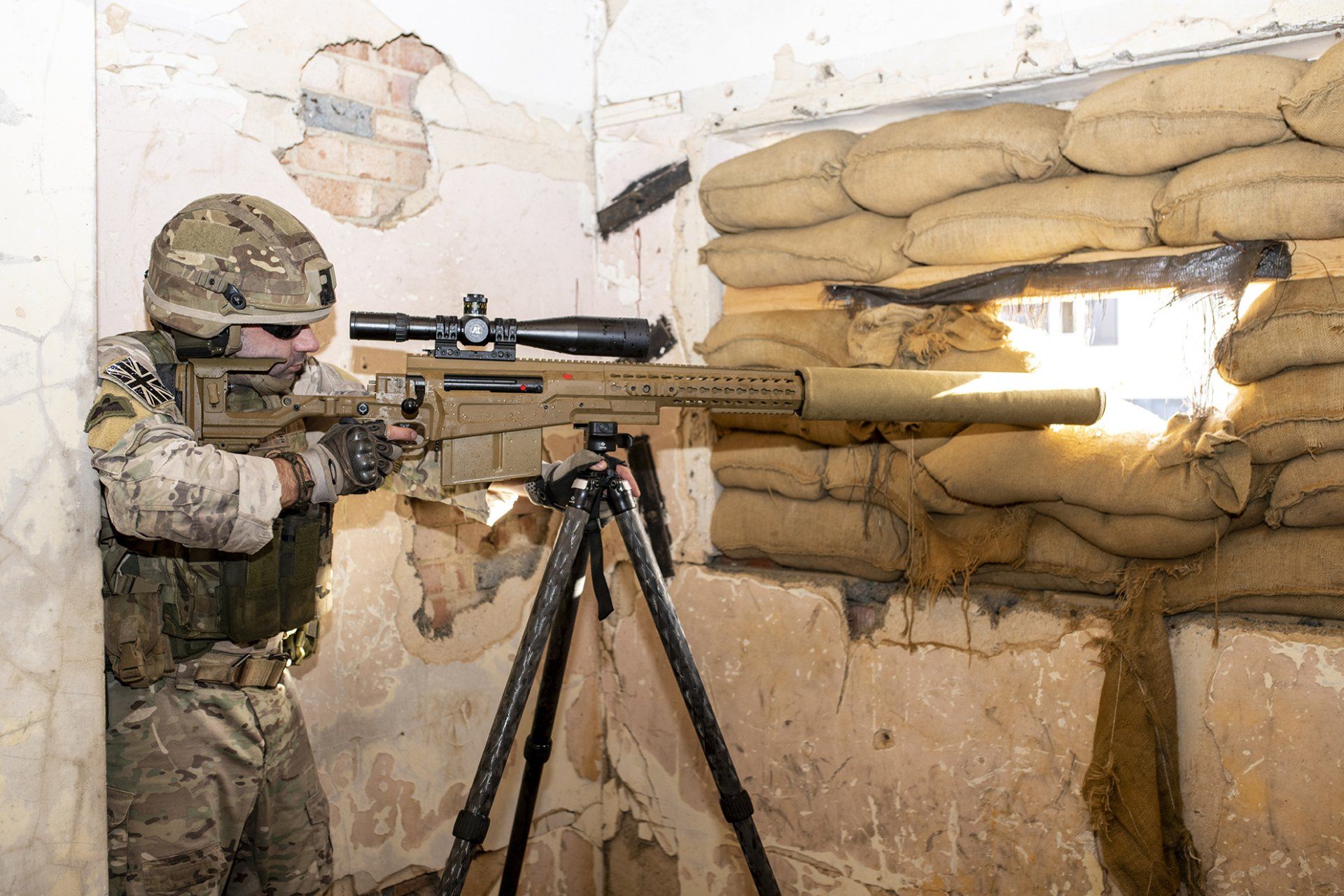

The flat bottomed forend features an integral Arca-Swiss style tripod mounting rail
-
BARRIER SUPPORTItem Link
The chassis front face is machined to provide a rugged barricade support
-
FORENDItem Link
Forend tube with KeySlot™ mounting system for accessory rails. Arca-Swiss style dovetail tripod rails and barricade support
-
BARRELSItem Link
AI profile and cut-rifled stainless steel barrel manufactured in England by AI UK with M39 barrel tenons
-
MUZZLE BRAKEItem Link
The AI triple chamber muzzle brake reduces recoil, muzzle flash and dust eruption. Easily removable for suppressor installation M24 x 1 muzzle thread
AX ELR COLOURS
BLACK
SAGE GREEN
DARK EARTH
AX ELR SPECIFICATION
CALIBRE
.50 BMG (12.7 x 99 mm)
WEIGHT
With muzzle brake, empty magazine, standard accessory rails, no scope, no bipod: 12.06 kg
DIMENSIONS
With 27” barrel & muzzle brake,
2 x 10 mm spacers
Full length: 1384 mm
Stock folded: 1143 mm
BARREL
.50 BMG: 27” bbl, 1 in 15” twist
BASE MODEL
• Right side folding stock over bolt
• Toolless, quick adjust cheekpiece
• Toolless, quick adjust buttpad with spacers
• LOP adjustment 49 mm (excluding spacers)
• Rear grip (rail mounted)
• Rubber AR style changeable pistol grip
• Flush cup sling attachment points
• 45 MOA STANAG 4694 / Mil Std 1913 action rail and forend rail
• Triple chamber muzzle brake
• 1 x 140 mm plain accessory rail
• 2 x 80 mm flush cup accessory rails
• User manual
• 1 x 10 round double stack CIP magazine
ACCESSORIES
• STANAG 4694 / Mil std 1913 accessory rails to attach to AI’s patented KeySlot™ mounting system
• AI Bipod and mounts for other bipod brands
• Quick adjust butt spike
• Suppressor
• Slings
• Transit cases
• Cleaning kits

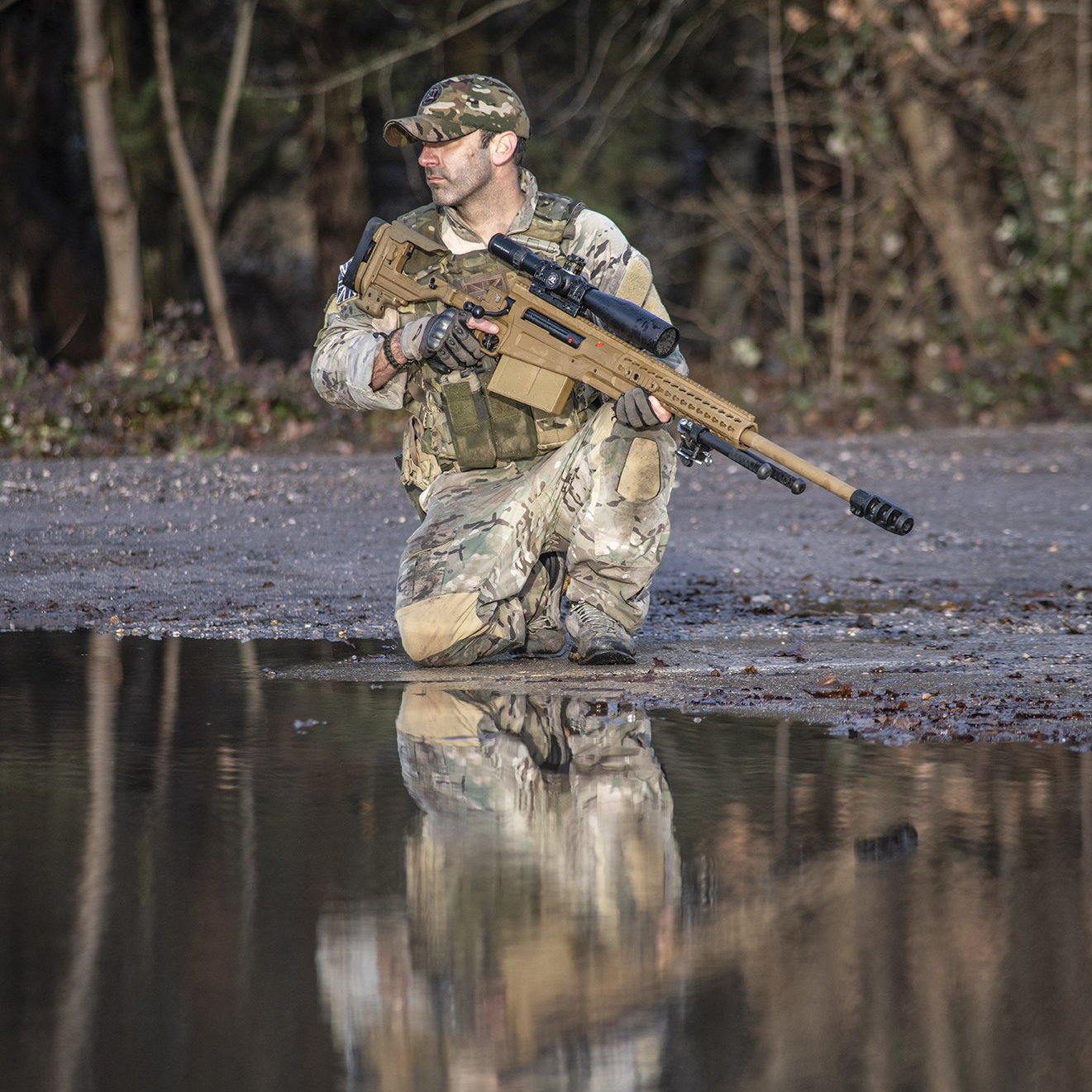

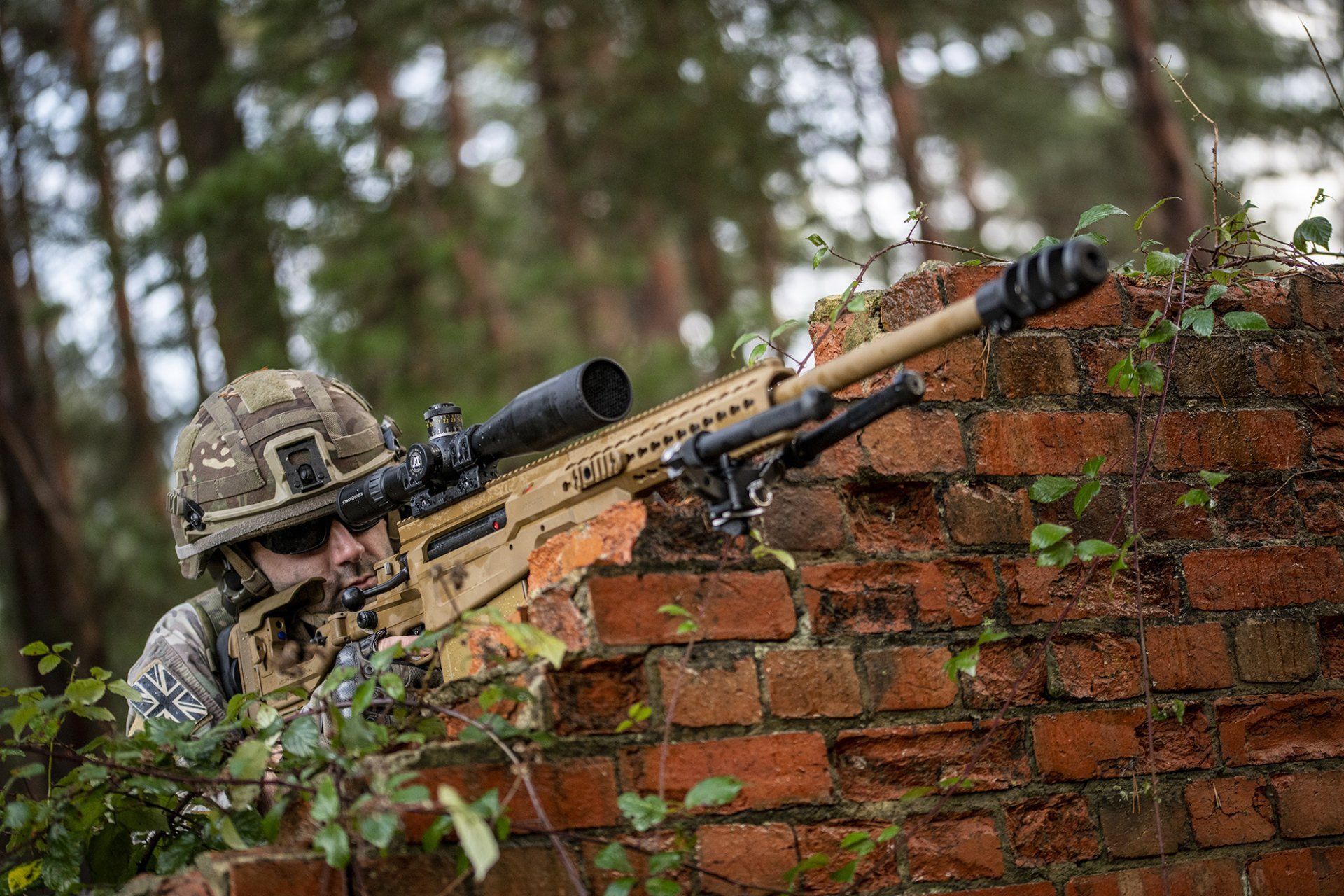

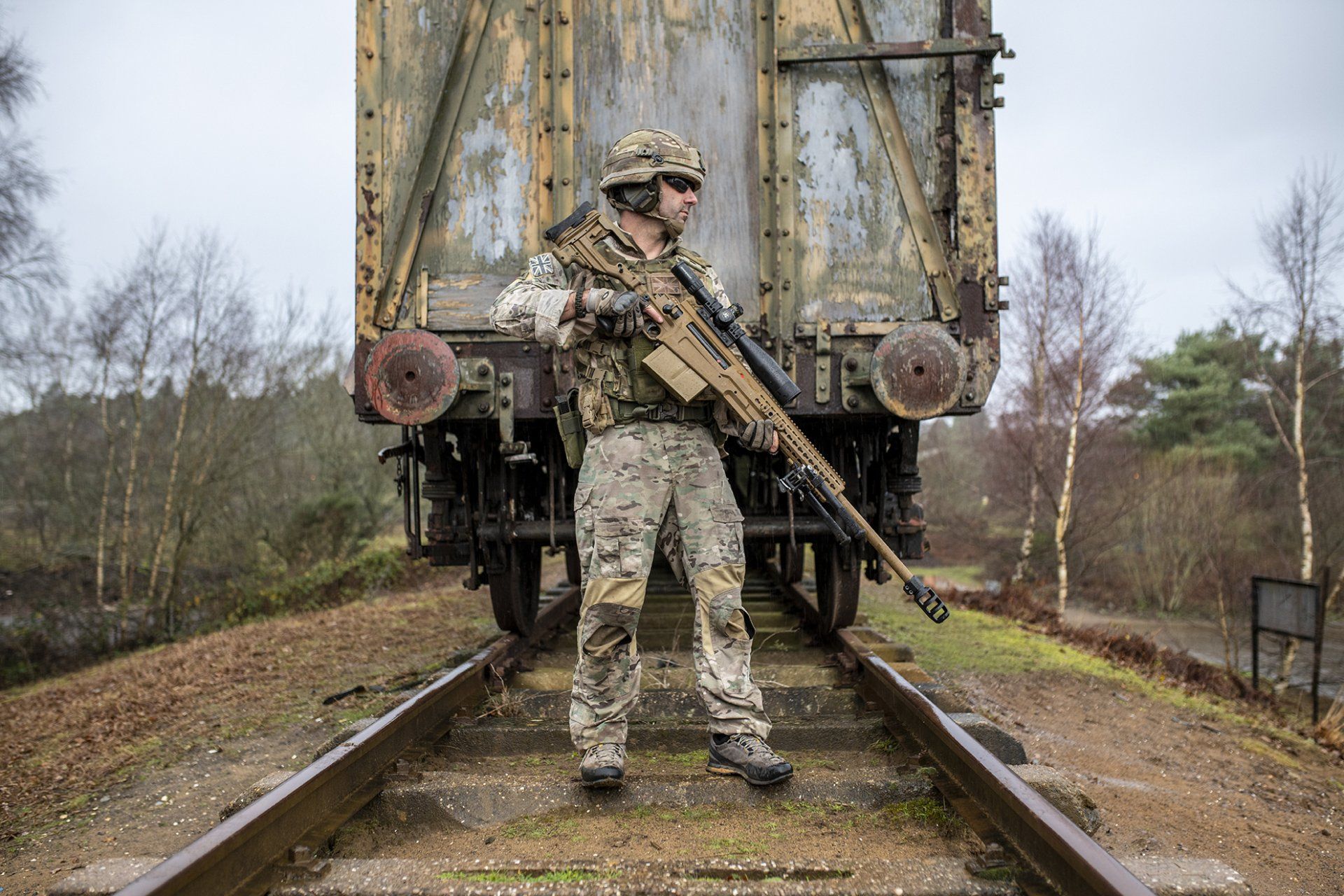

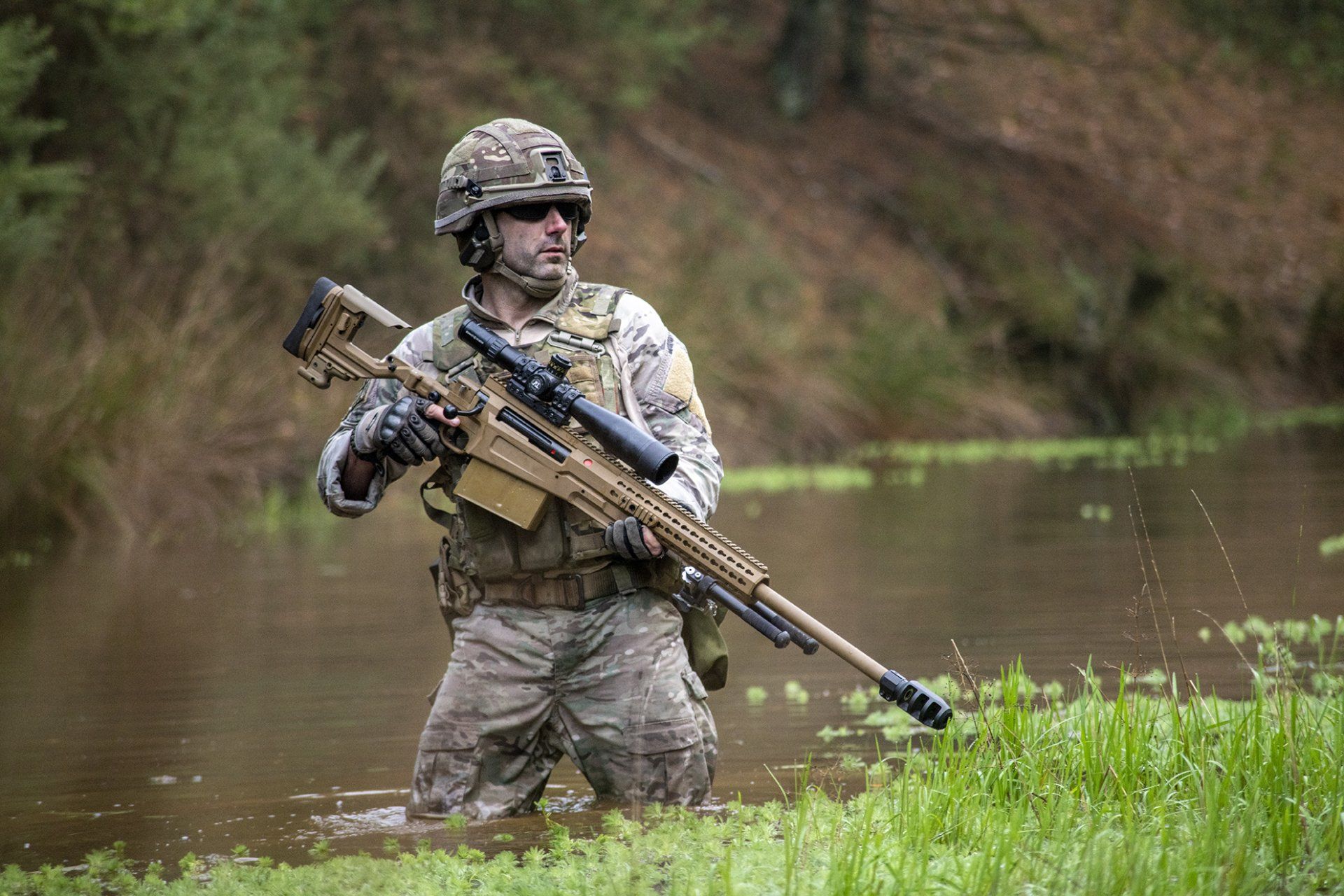

AX ELR SNAPSHOTS
